Duco® genuine replacement parts are manufactured to the same standards as the parts that came installed in your original equipment.

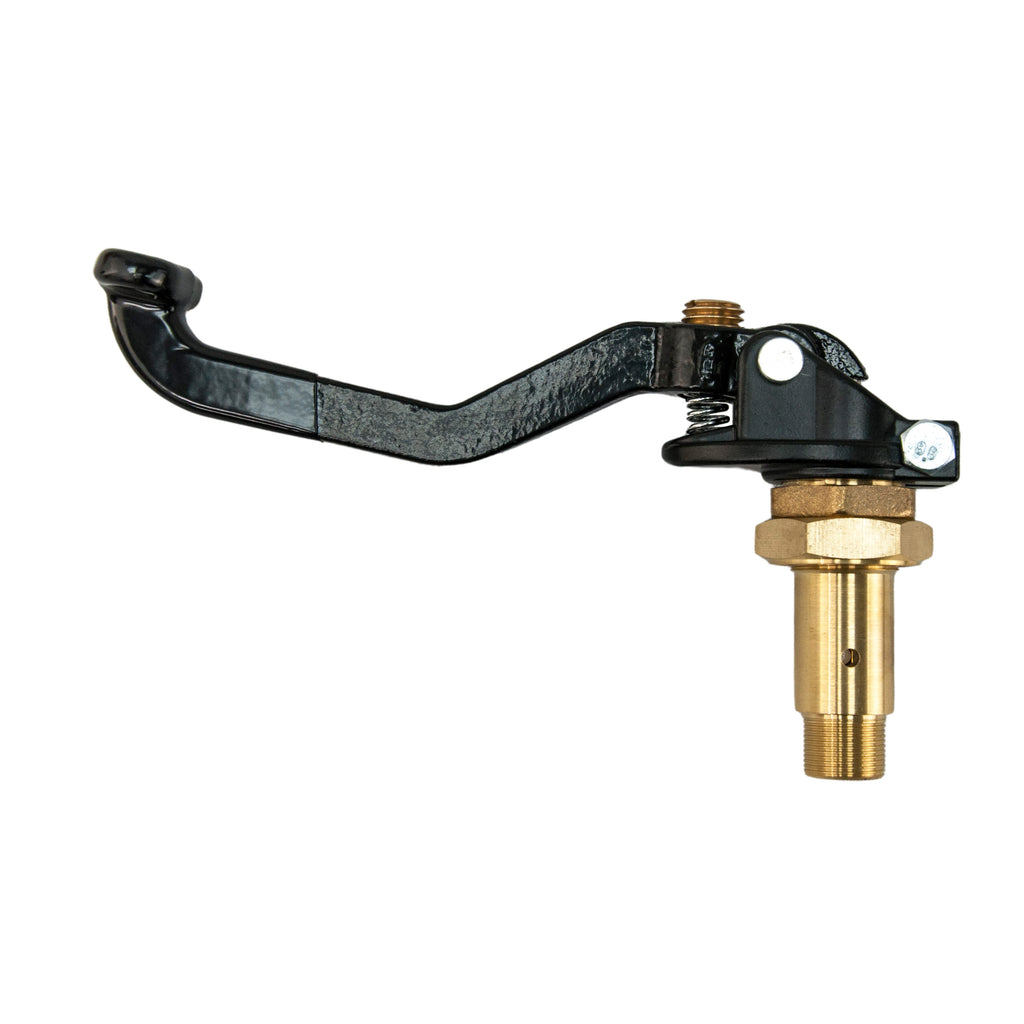

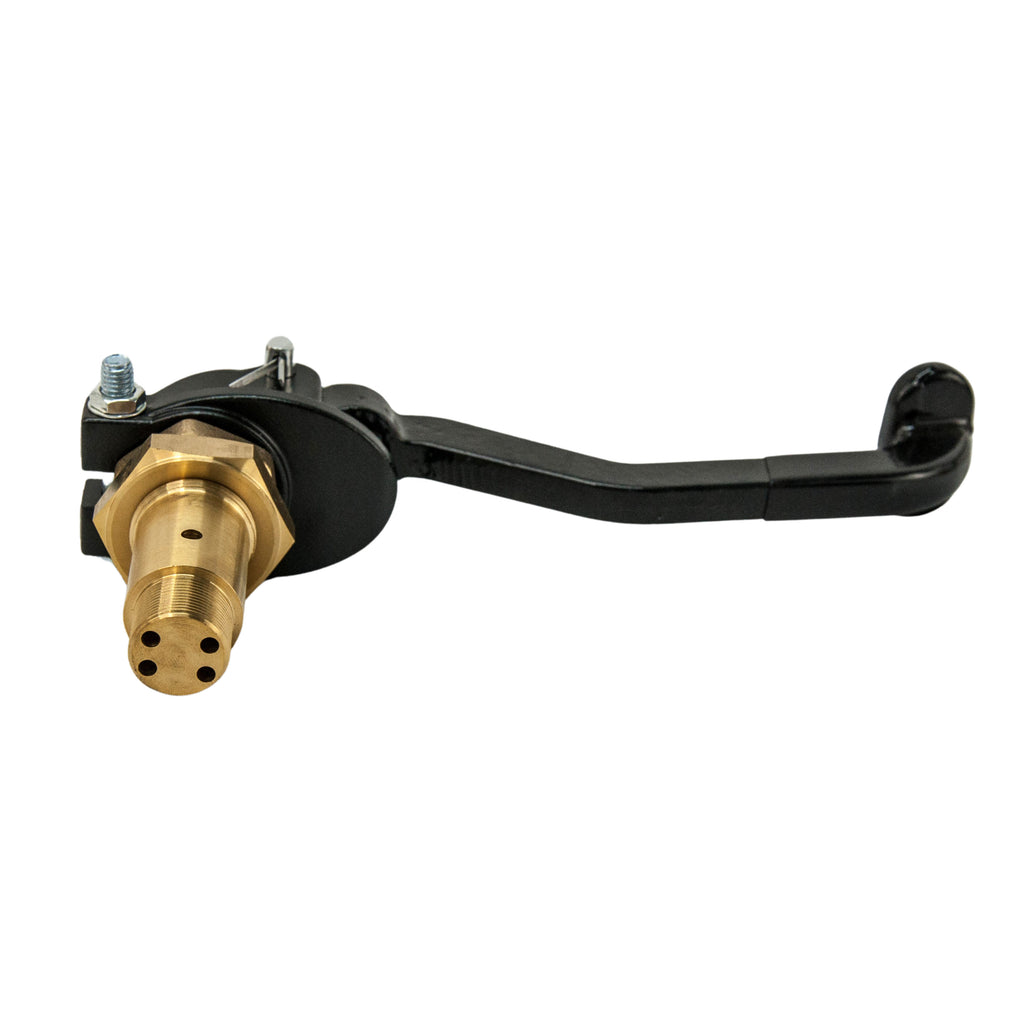

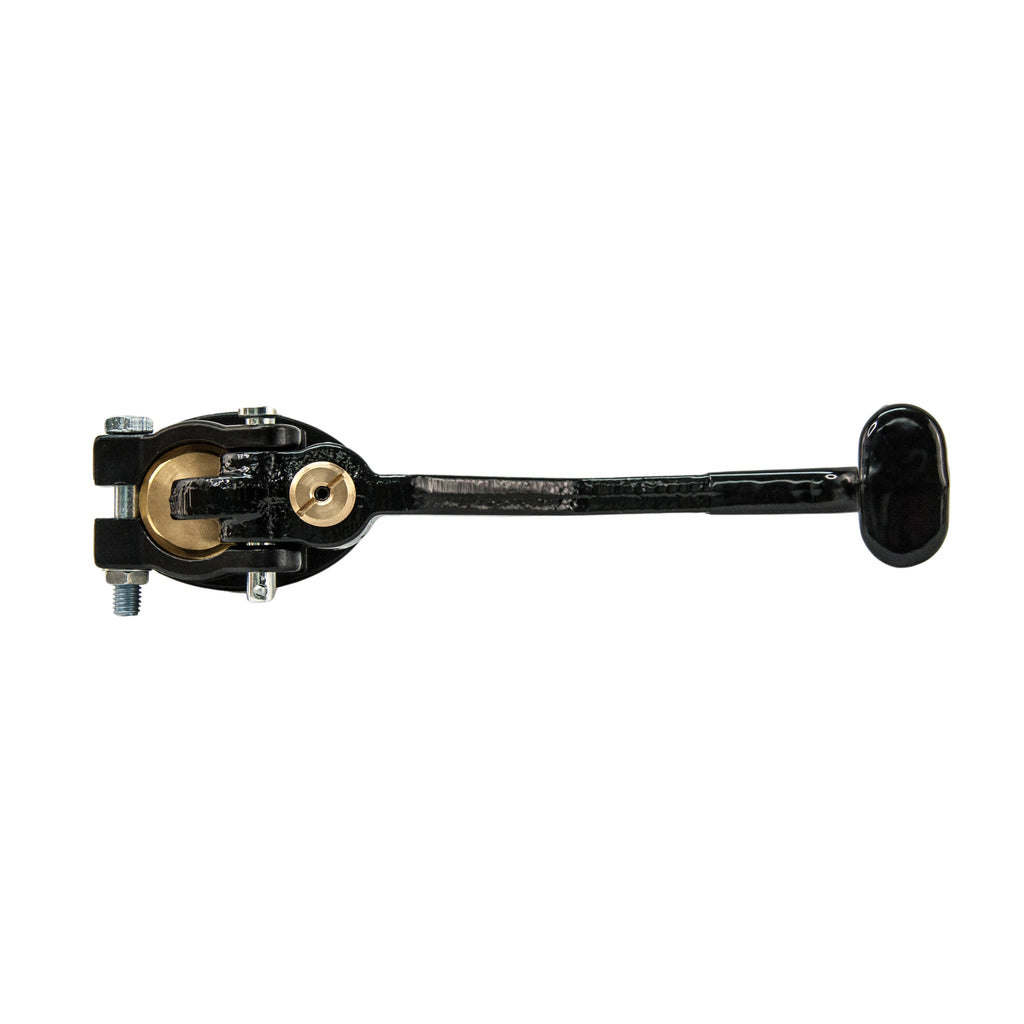

DHV1-S is a commercial-grade head valve designed to quickly open as force is applied to the lever and automatically self close upon release. It is commonly installed on press machines. The body is made of brass which is high ductility, abrasion and corrosion resistant.
| Specifications |
- 125 lbs WSP @ 350°F Max.
- 400 lbs WOG
- Brass Body
- NPT Threaded Ends
- 100% Leak & Pressure Tested
- PTFE Gasket Included
- Mfg. Part# 28956
|
|

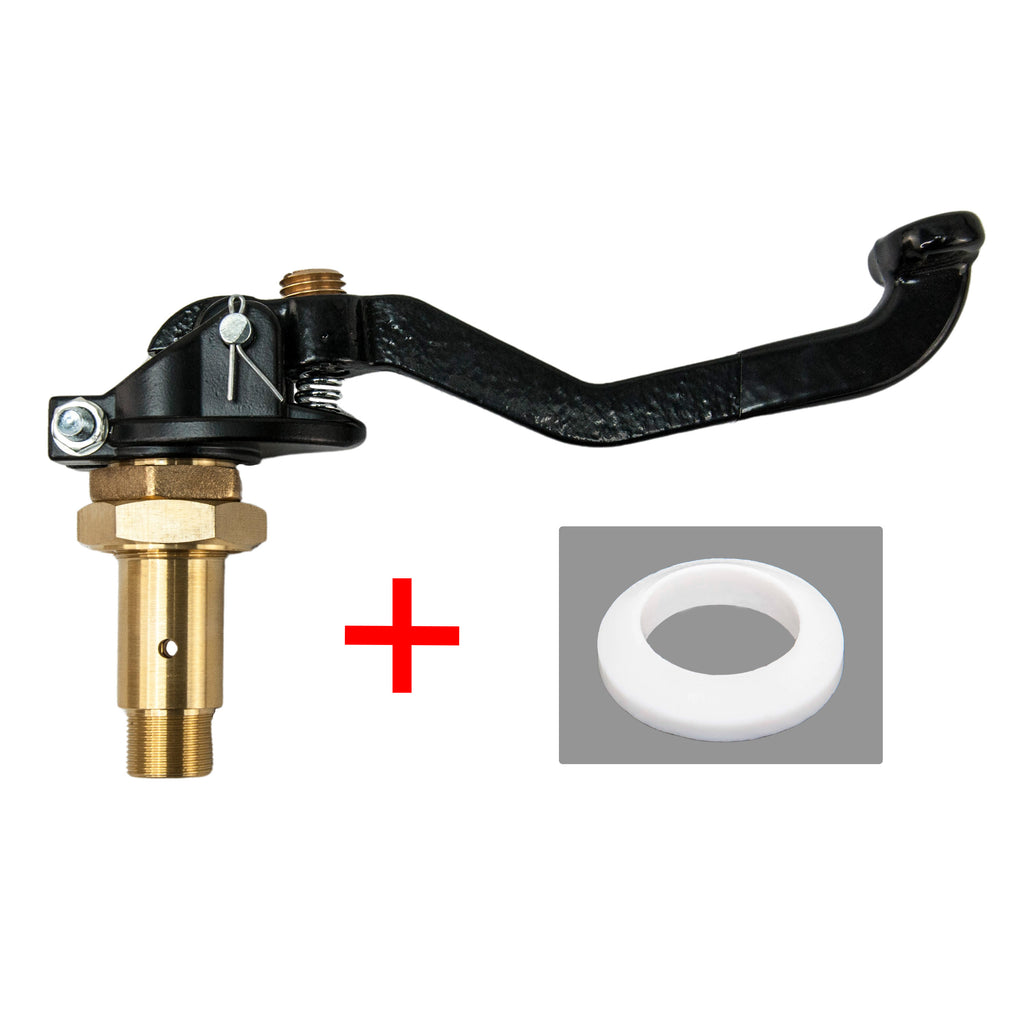

Included in Set (Item# U28956)
|
- 1 Head Valve Assembly (without bushing)
|
|
|

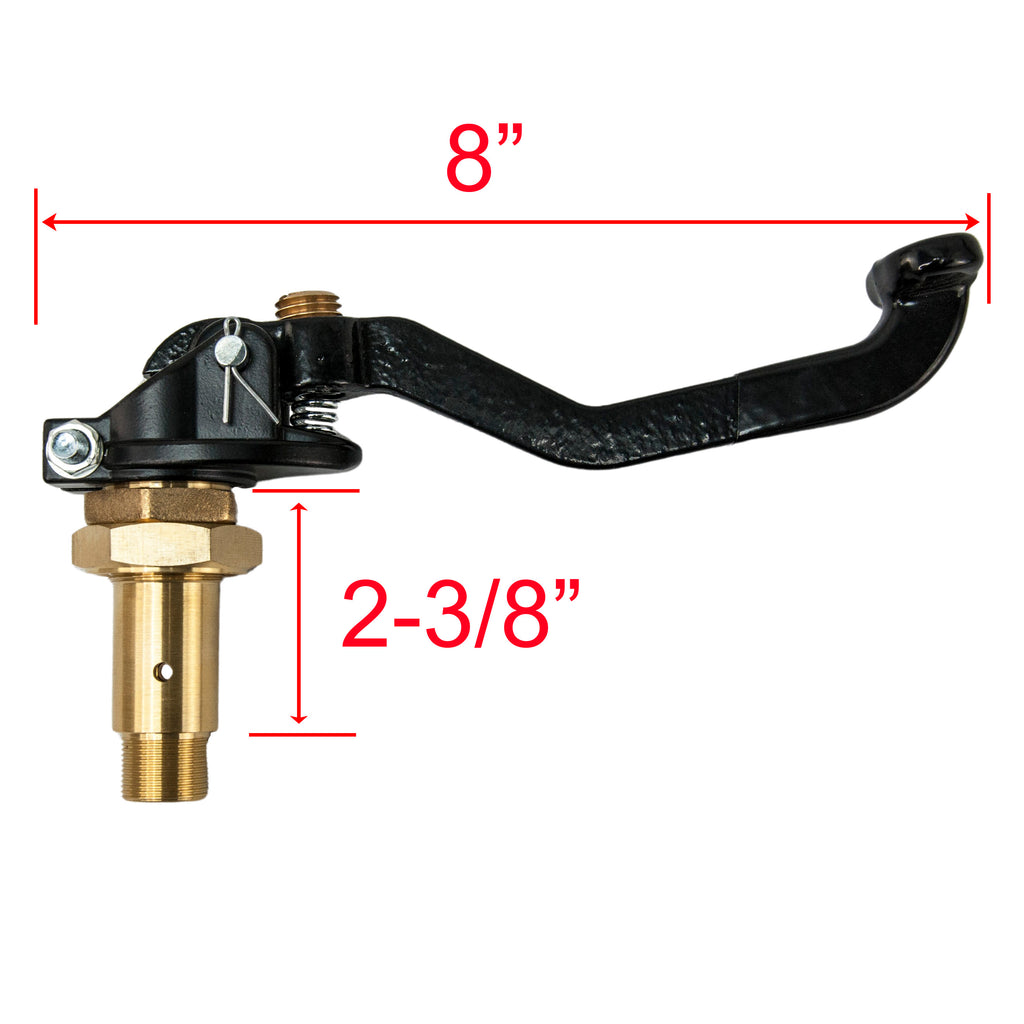

DHV1-S Specifications
