Description
Duco® genuine replacement parts are manufactured to the same standards as the part that came in your condensate return tank.

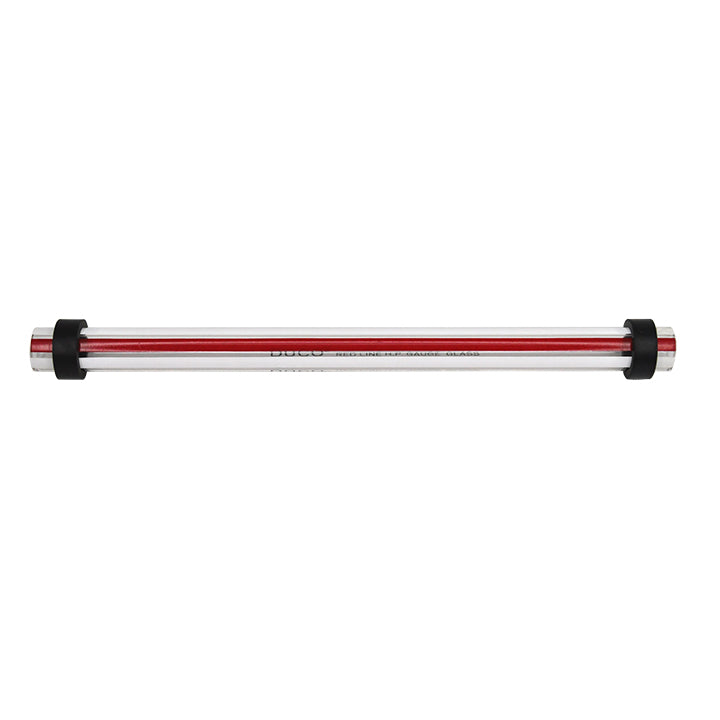

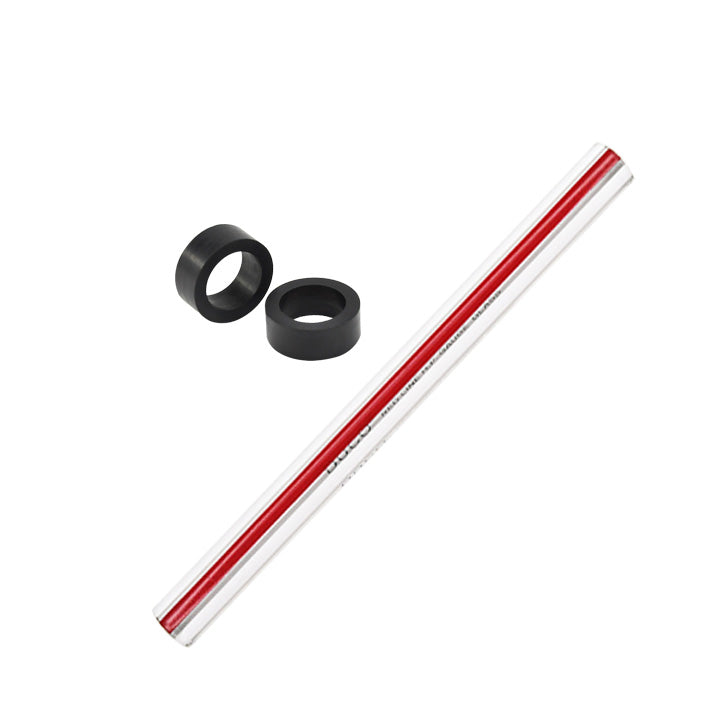

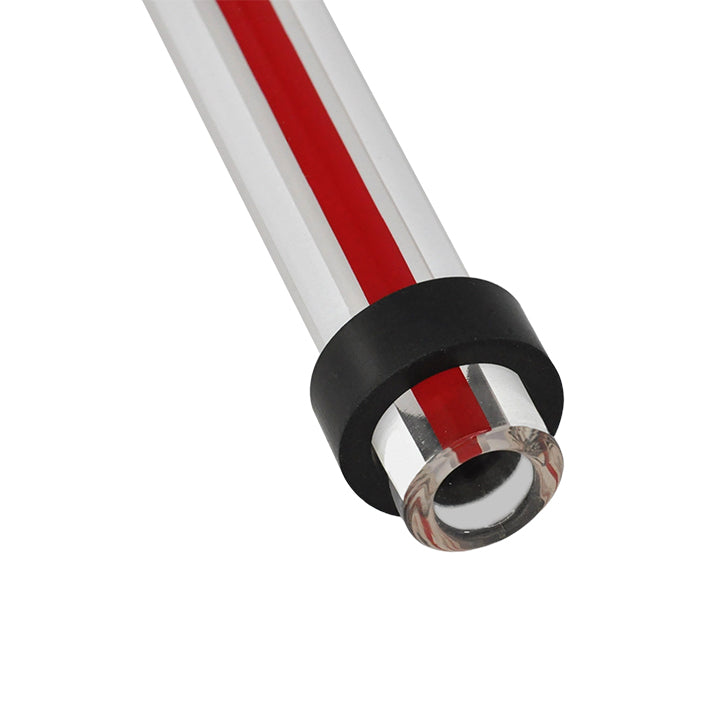

DBG-R series is a transparent commercial-grade tubular sigh glass designed to effectively monitor the water level inside a condensate return tank, reservoir tank or low pressure boiler. It is commonly installed with a water gauge valve (sold separately) to complete the assembly.
Fits 5/8" OD tubular sight glasses of all brands steamer, steam boiler, return tanks and reservoirs.
| Specifications |
|
|
Maximum Recommended Working Pressure, psi |
||
|
Length (Inch) up to |
Temperatures up to 150ºF (w/o corrosion) |
Steam Boiler Service up to 425ºF |
|
8 |
460 |
340 |
|
10 |
445 |
335 |
|
12 |
435 |
325 |
|
14 |
415 |
315 |
|
16 |
400 |
300 |
