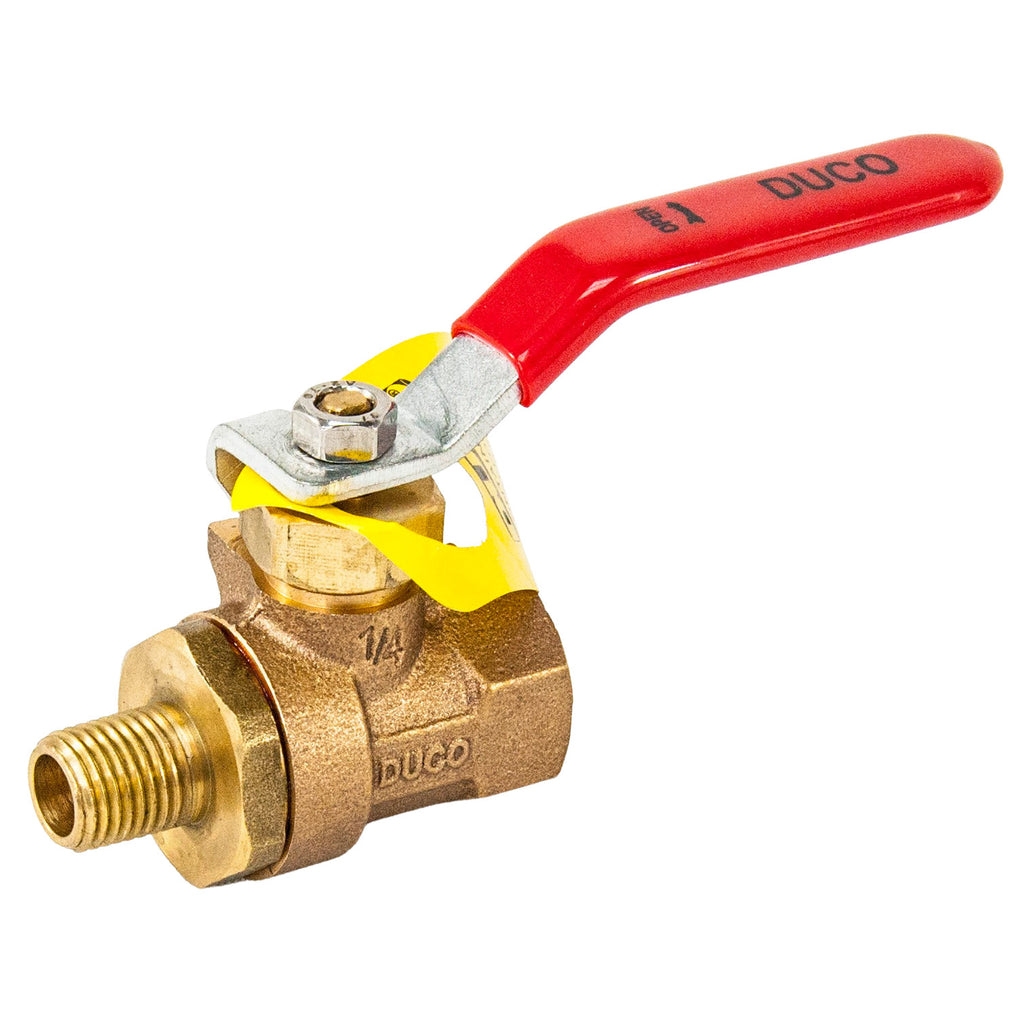

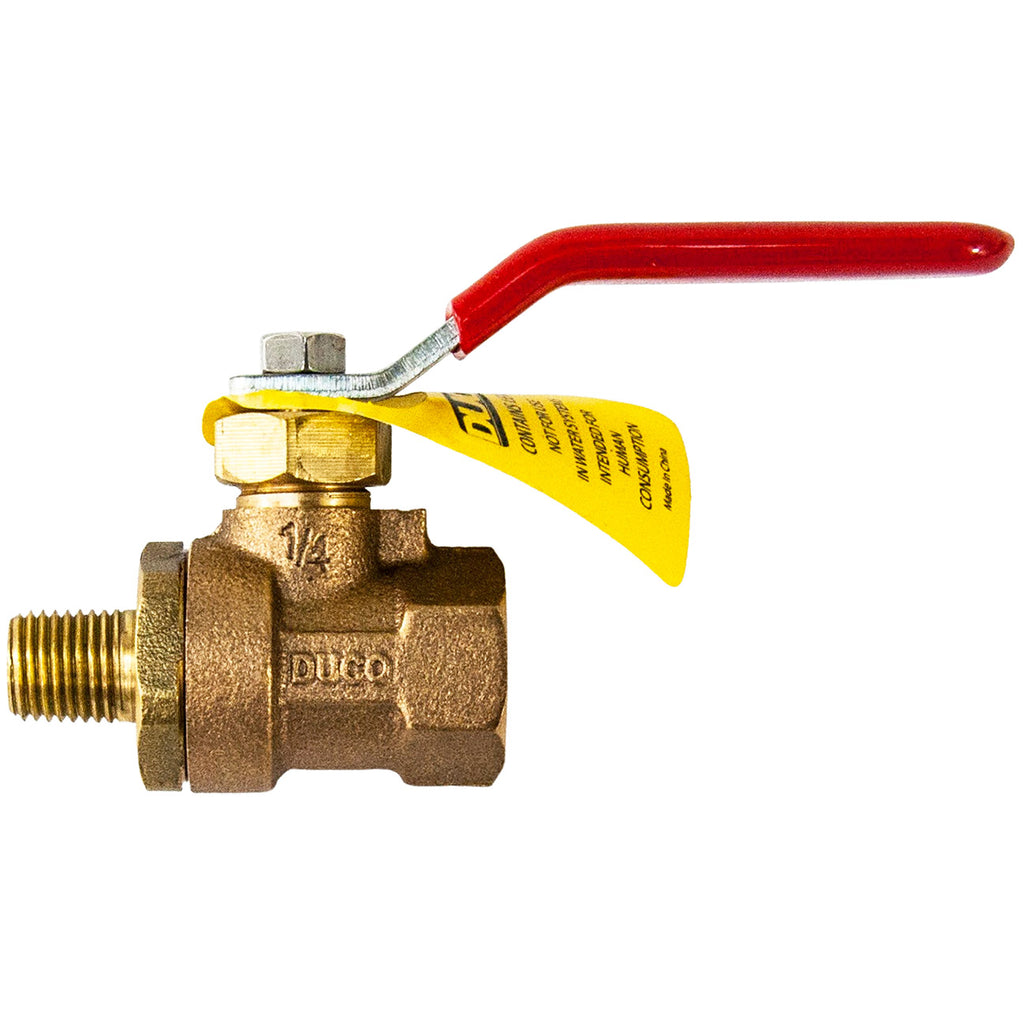

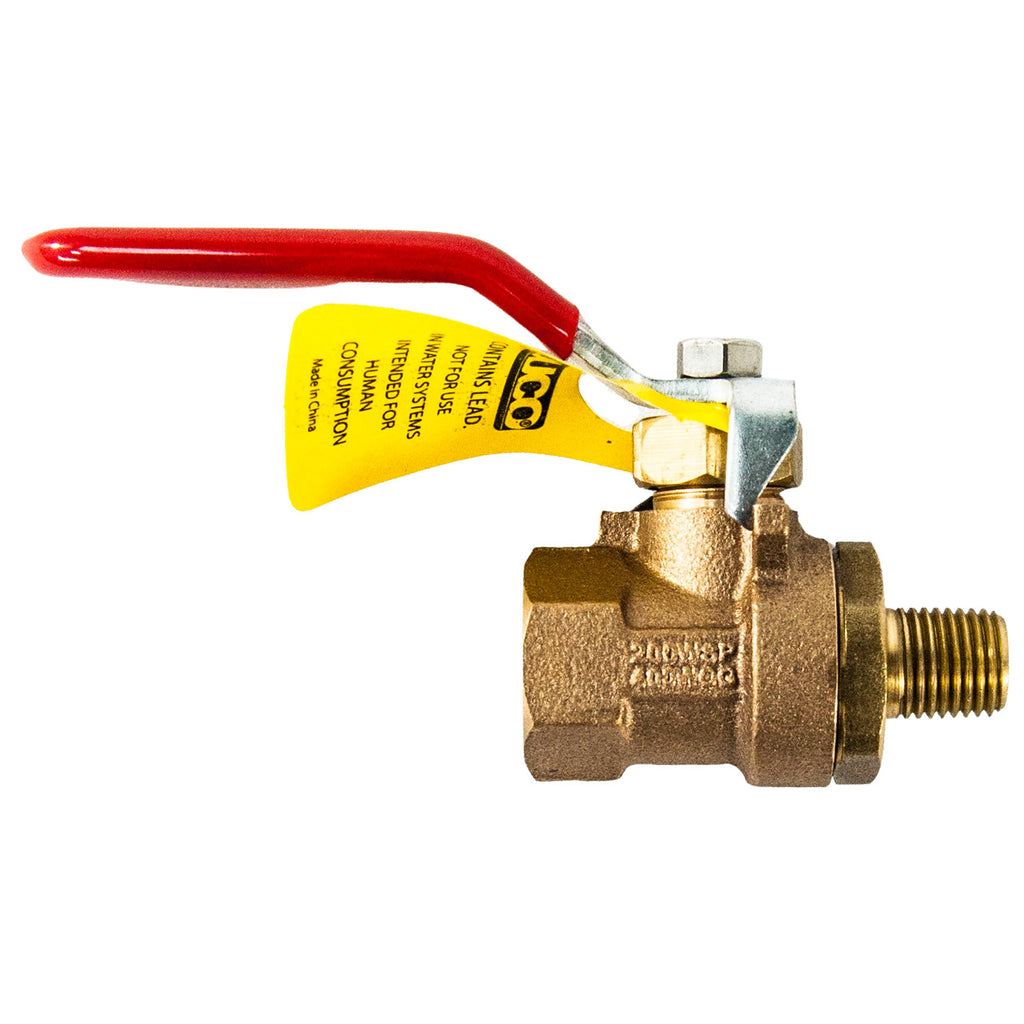

Duco® DBV200 Series is a commercial-grade full port ball valves designed to achieve a perfect shut off and opening even after years of use. Used to control flow through a pipeline and providing a reliable start and stop of a particular line.
It is commonly installed before and after a station or equipment which allows shutting off the source without turning off the entire supply source.
The body is made of bronze which is high ductility (crack resistant) and corrosion resistant. Contains lead, not for use in water systems intended for human consumption.
| Specifications |
- 200 lbs WSP / 400 lbs WOG
- 406°F Max.
- Bronze Body ASTM B62
- MNPT x FNPT Threaded Ends
- Available Size: 1/4"
|
| Features |
- Chromed Ball
- PTFE Seats
- Blow-Out Proof Stem
- Vinyl Handle Grip Lever
- Conforms to ASME Boiler Code
- Complies with MSS-SP-80
- CRN# OC13433.5C
- 100% Leak & Pressure Tested
|
DBV200M Series Technical Sheet
