Burks® 5CT6M 1/2HP Pump Water Condensate Turbine Boiler Feed 115/208-230V 1-Phase

Save 30%
BURKS®Item# PUMP5CT

Price:
Sale price$2,151.00 Regular price$3,072.00
Stock:
In stock

Description

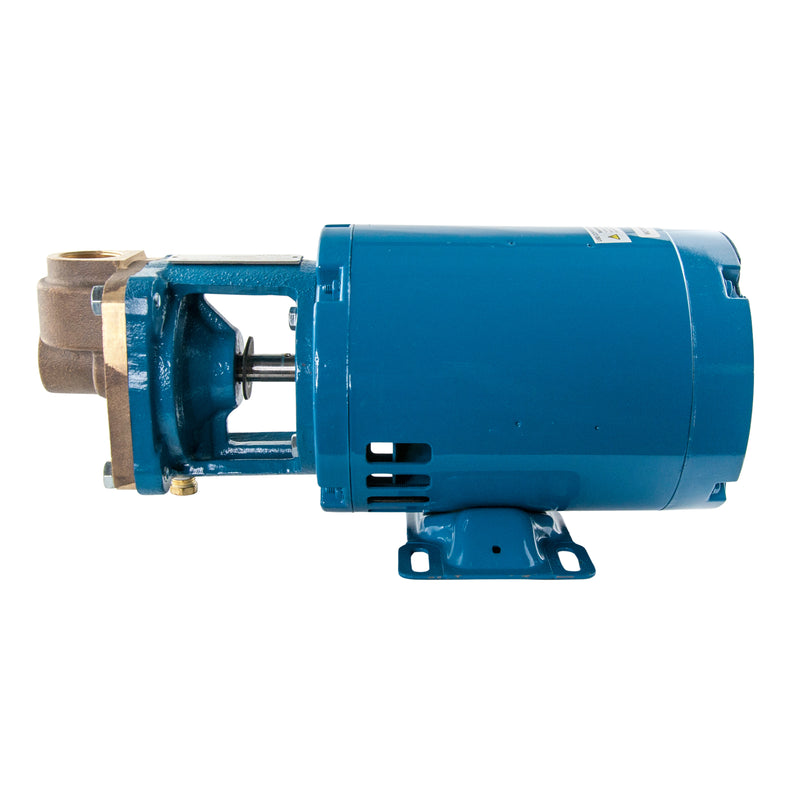

Burks® CT Series close coupled turbine pump model 5CT6M is especially engineered for boiler feed on steam applications. Designed to pump hot water condensation to high pressure boilers. Ideal for 7-15 HP boilers and up to 26 gal. return tanks.

Burks® is the only turbine pump with Life-Lok® external impeller adjustment feature, allowing re-adjustment of impeller without disturbing piping or having to disassembling pump when replacing parts. As a result, gives up to 40% longer service life than pumps of other designs.

Features
  • Bronze Impeller with Monel Blades
  • Bronze Raceway with Cast-in Vortex Pockets
  • 316 Stainless Steel Pump Shaft
  • Carbon/Ceramic Mechanical Shaft Seal
  • Motor Rated for Continuous Duty Operation
  • Life-Lok® External Impeller Adjustment
  • Self-Priming
  • No Coupling between Motor and Pump to prevent misalignment
  • Mechanical Shaft Seal replaceable without disturbing piping
  • Compact, Space-Saving Size
  • Every Pump Factory Tested



Specifications
  • 1/2 Horsepower (Close Coupled)
  • 3450 RPM
  • 115/230V 60Hz (Pre-wired 115V)
  • Single Phase Motor
  • Capacitor Start/Induction Run w/Built-in Overload Protection
  • 1" NPT Suction Inlet
  • 1" NPT Discharge Outlet
  • 100 psi Inlet Pressure
  • 250 psi Max. Casing Working Pressure
  • 225°F (107°C) Max Temperature
  • 6 GPM
  • Gross Weight 31lbs



Burks® CT Series Technical Sheet

Burks® Warranty
