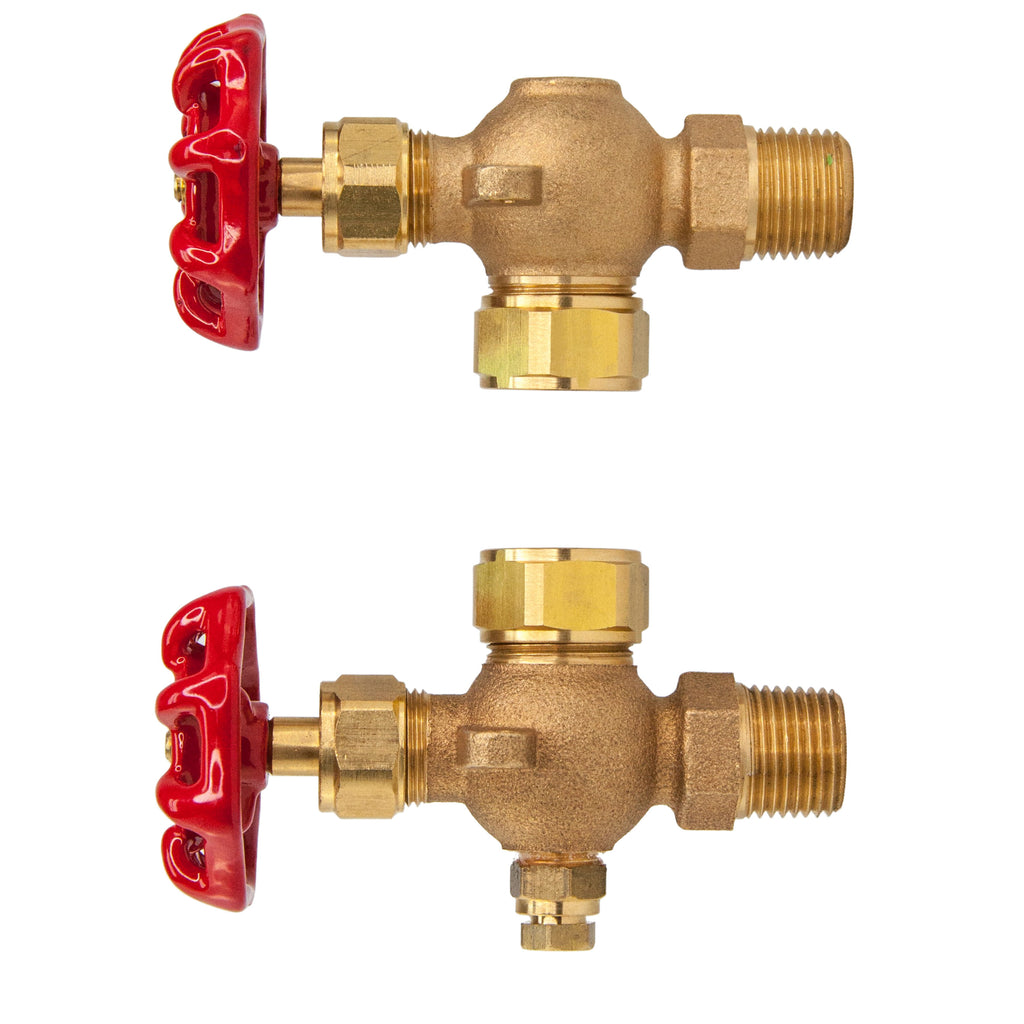

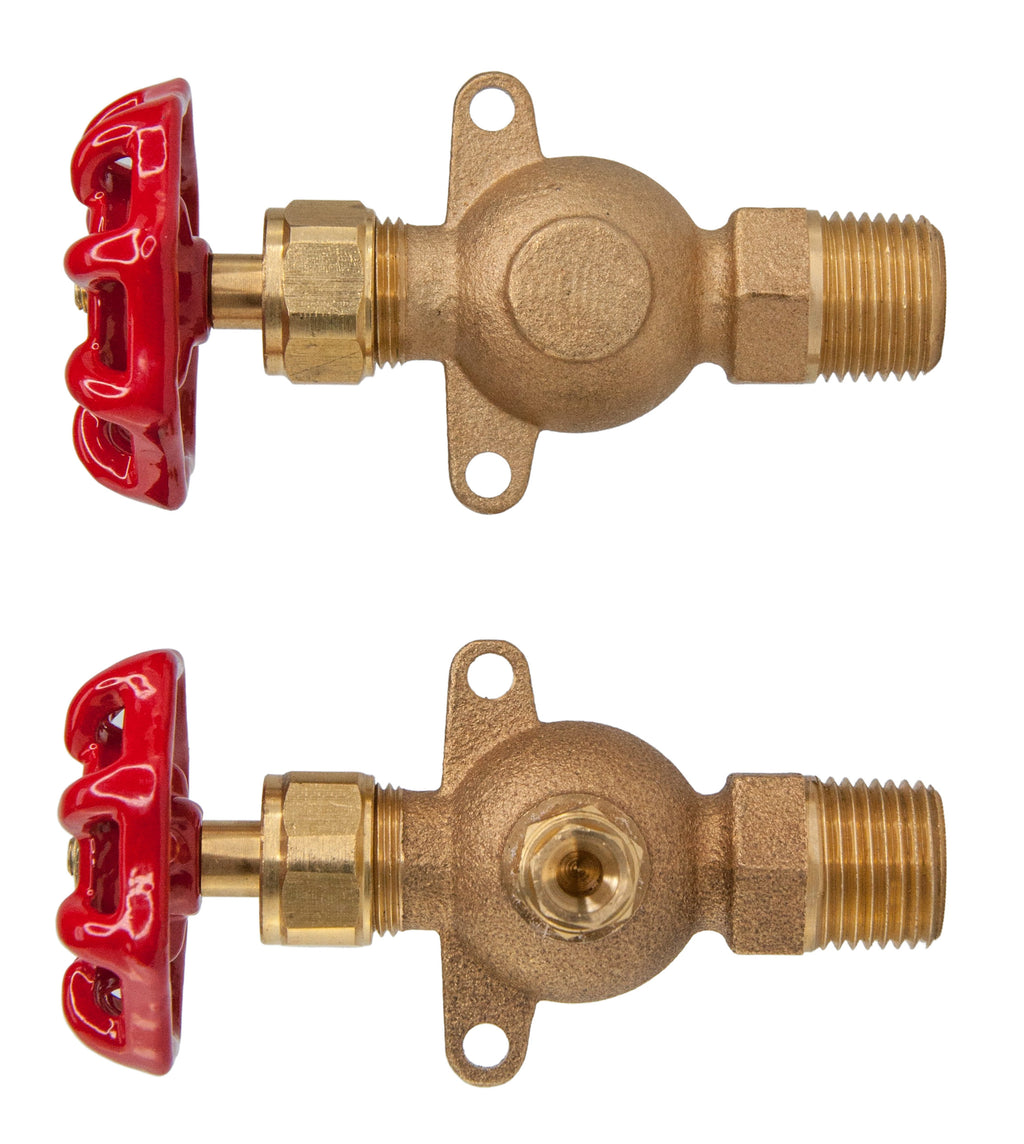

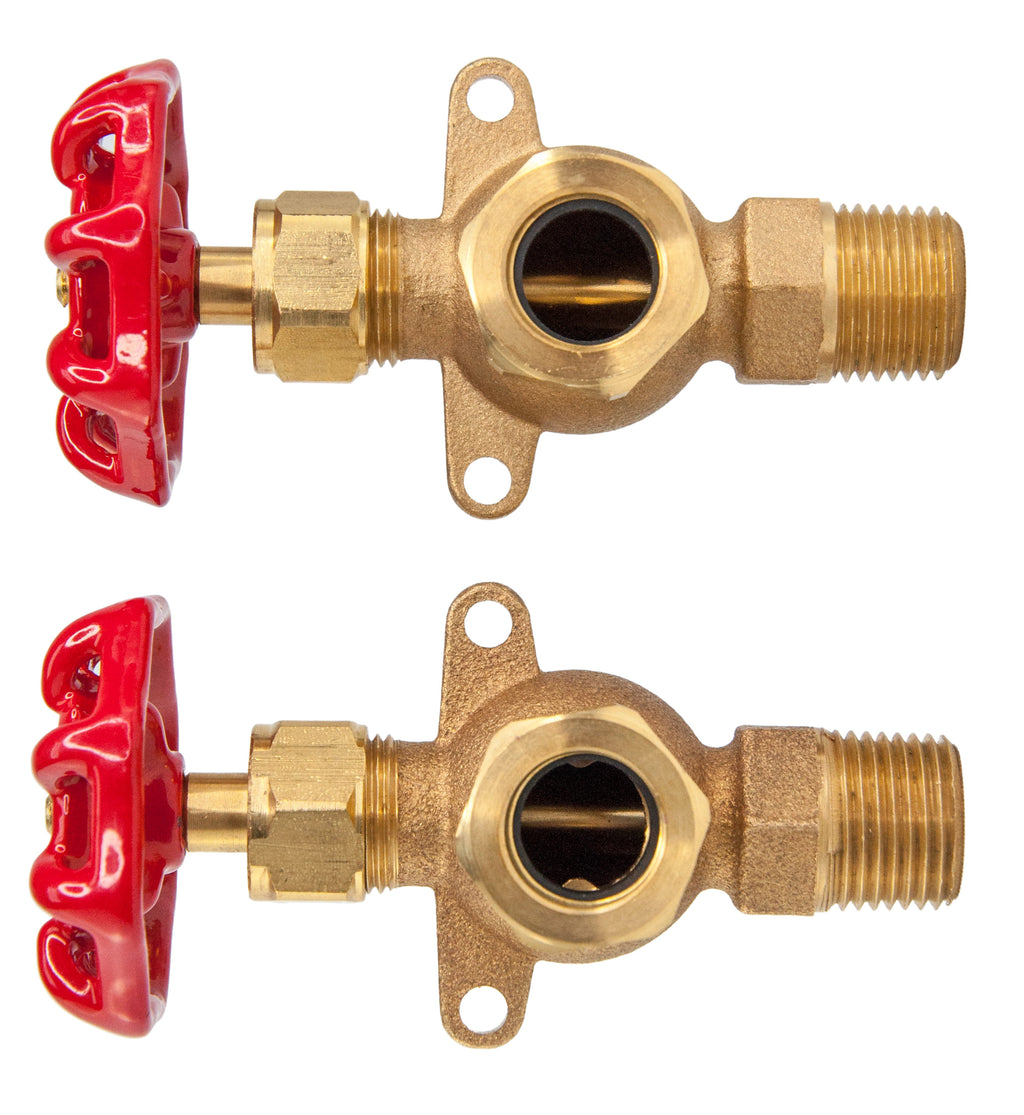

Duco® DWG-J Bronze Water Gauge Valve Set with Stainless Steel Safety Ball Check

Save 10%
DUCO®Item# DWG-38J

Size: 3/8"
Price:
Sale price$61.00 Regular price$68.00
Stock:
In stock

Description

Duco® genuine replacement parts are manufactured to the same standards as the parts that came in your condensate return tank.

DWG-J Series is a commercial-grade water gauge that allows to effectively monitor the water level inside a mini-boiler/steam generator. It is commonly installed with a sight glass (not included) to complete the assembly.

The body is made of bronze which is crack and corrosion resistant. Contains lead, not for use in water system intended for human consumption.



Specifications
  • 200 psi @ 400°F Max
  • 400 psi @ 100°F Max
  • Bronze Material ASTM B62
  • NPT Threaded Ends
  • Available Size:
    • 3/8" NPT Conn. (for 5/8" OD Sight Glass)
    • 1/2" NPT Conn. (for 5/8" OD Sight Glass)
    • 3/4" NPT Conn. (for 3/4" OD Sight Glass)



Features

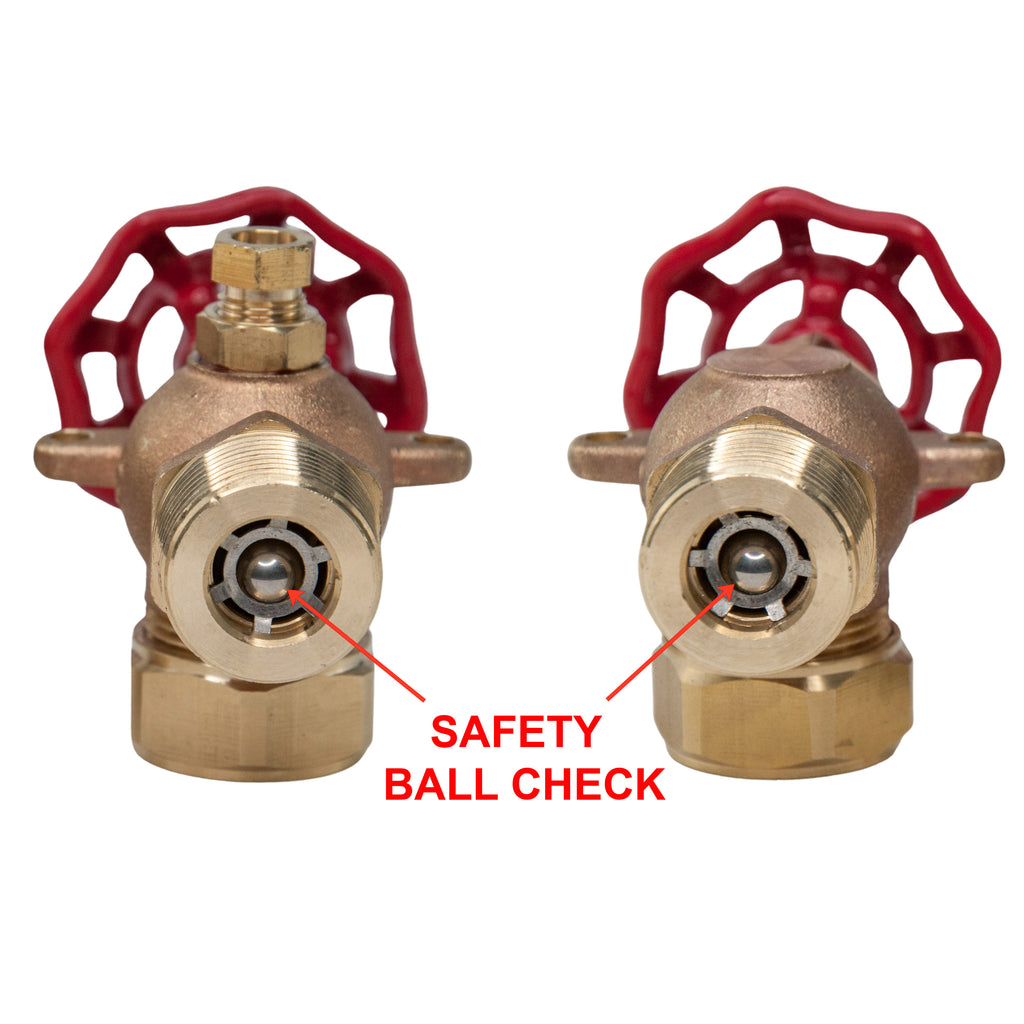

  • Rising Stem with Internal Stainless Steel Ball Check
  • Built-In Drainage Needle Valve
  • Conforms to ASME Boiler Code
  • Complies with MSS-SP-80
  • 100% Leak & Pressure Tested



Included in Set
  • 1 Water Gauge Upper Valve
  • 1 Water Gauge Lower Valve
  • 2 Glass Nut
      • 2 Metal Washer
      • 2 EPDM Gasket



      Additional Resources

      DWG-J Series Technical Sheet
