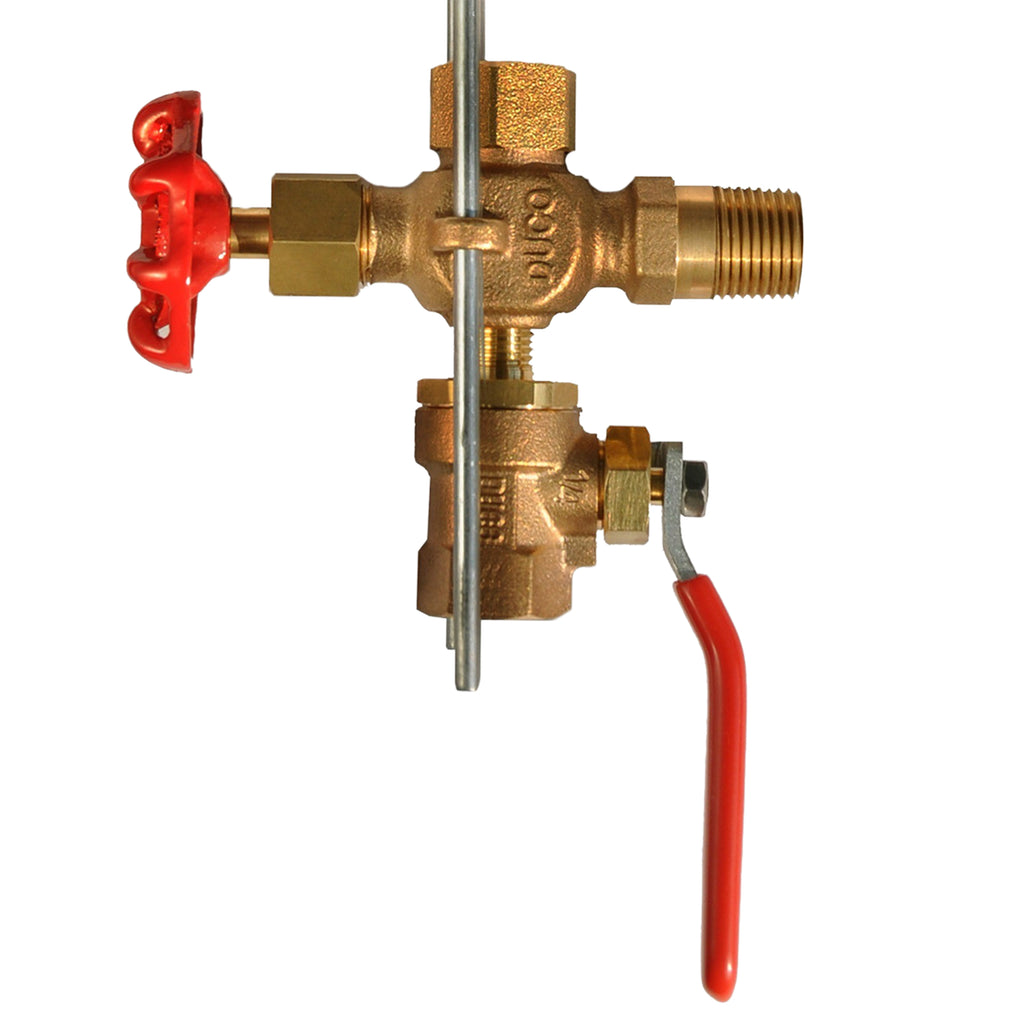

Duco® DWG Bronze Water Gauge Valve Set with Ball Check & Blow Off Ball Valve for Boiler/Return Tank

Save 25%
DUCO®Item# DWG-S

Shank Type: Short Shank
Price:
Sale price$72.00 Regular price$96.26
Stock:
In stock

Description

Duco® genuine replacement parts are manufactured to the same standards as the parts that came in your condensate return tank.

DWG Series is a commercial-grade water gauge that allows to effectively monitor the water level inside a boiler or return tank. It is commonly installed with a sight glass (not included) to complete the assembly. A set of two steel rods to protect the sight glass from any accidental hit and a ball valve for drainage are included.

The body is made of bronze which is crack and corrosion resistant. Contains lead, not for use in water system intended for human consumption.



Specifications
  • 250 lbs WSP / 400 lbs WOG
  • 406° F Max
  • Bronze Material ASTM B62
  • NPT Threaded Ends
  • Available Size:

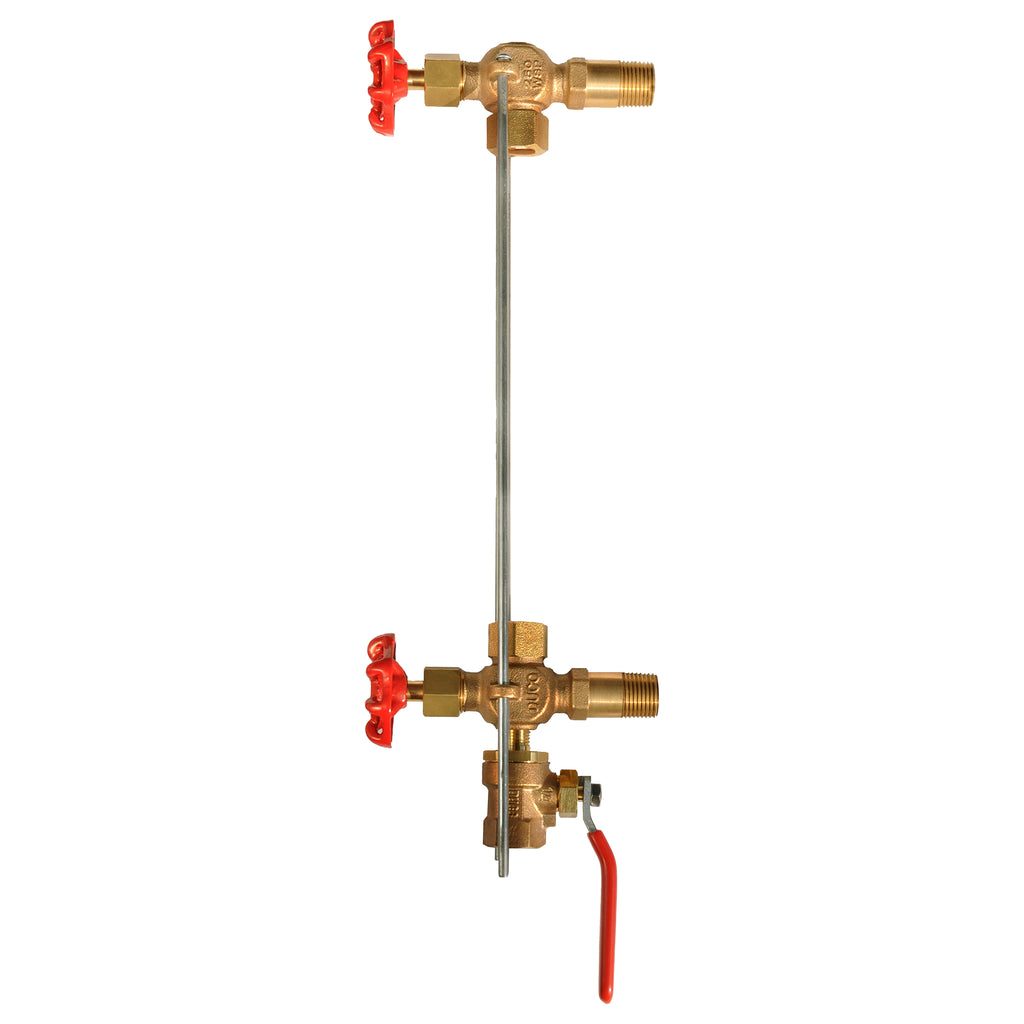

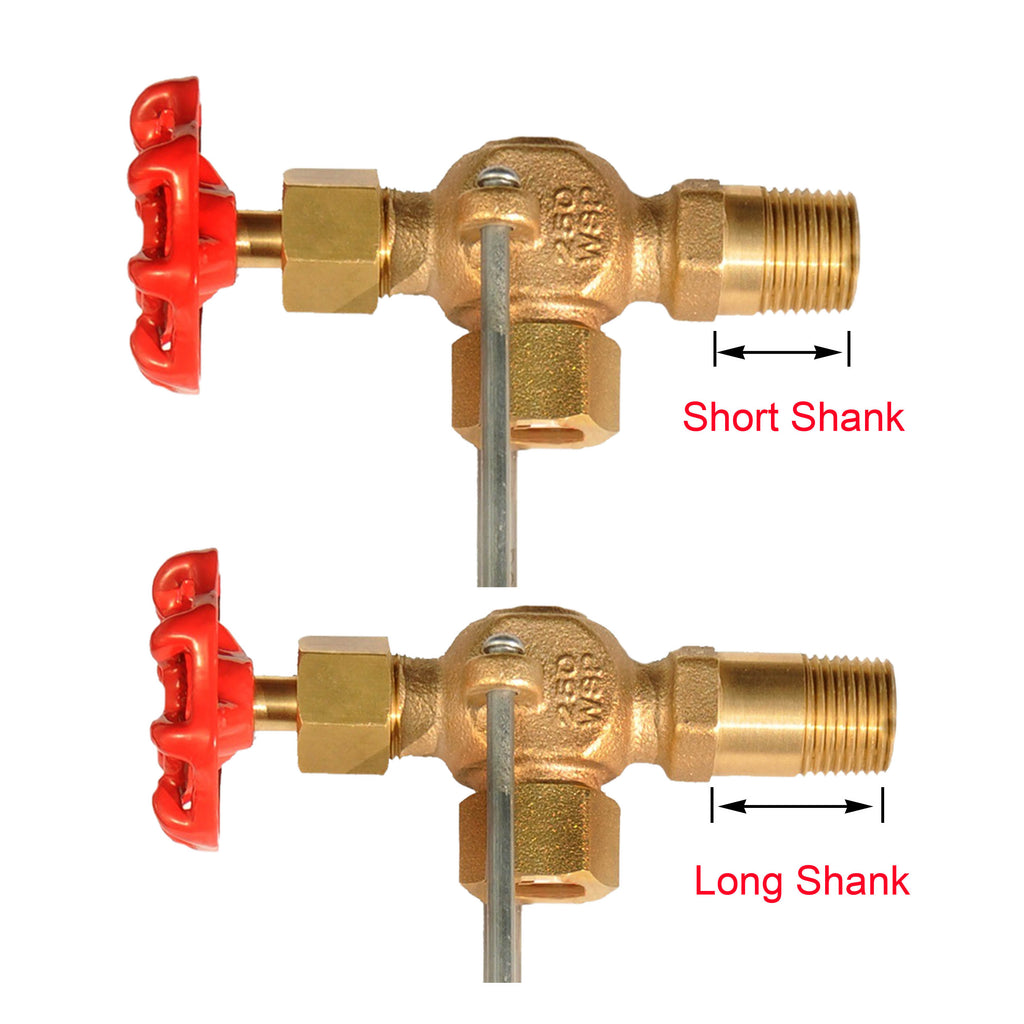

    • 1/2" NPT Conn. - Long Shank (for 5/8" OD Sight Glass)

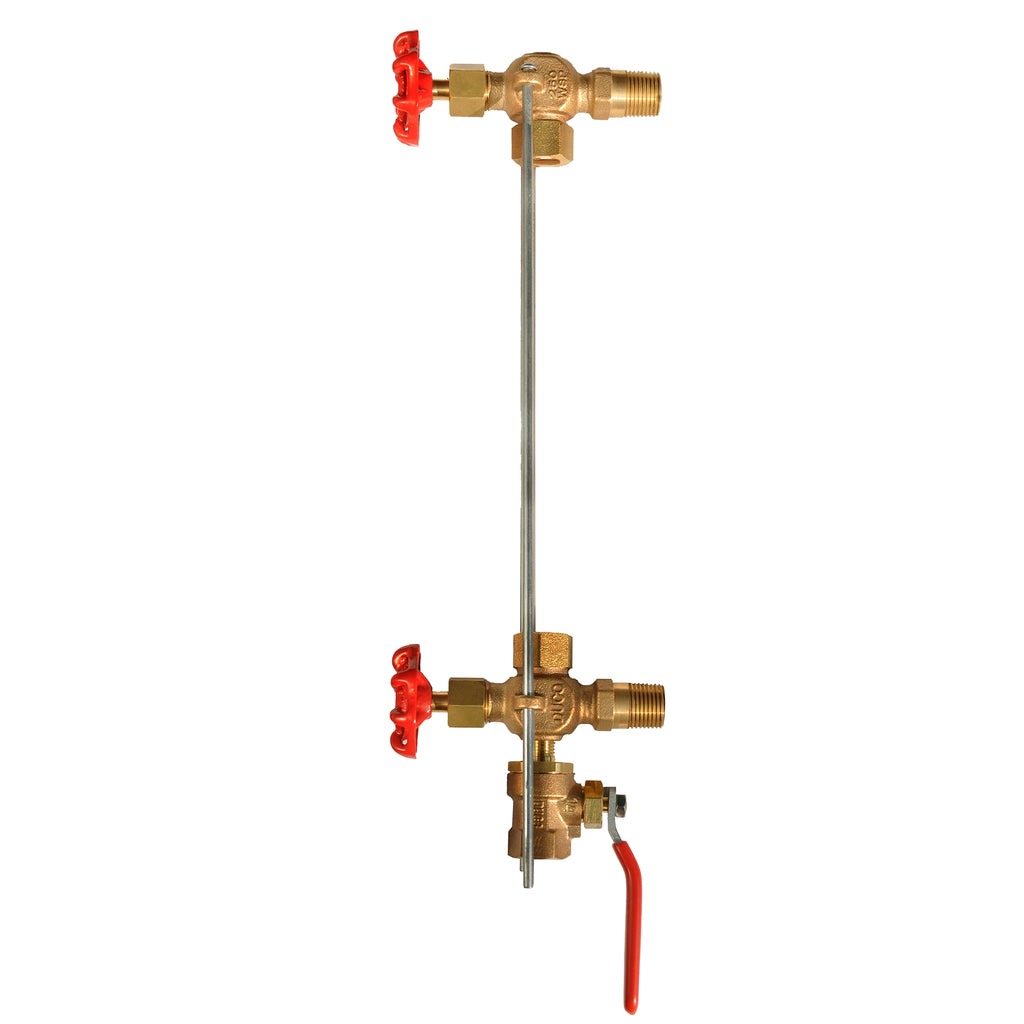

    • 1/2" NPT Conn. - Short Shank (for 5/8 OD Sight Glass)



Features

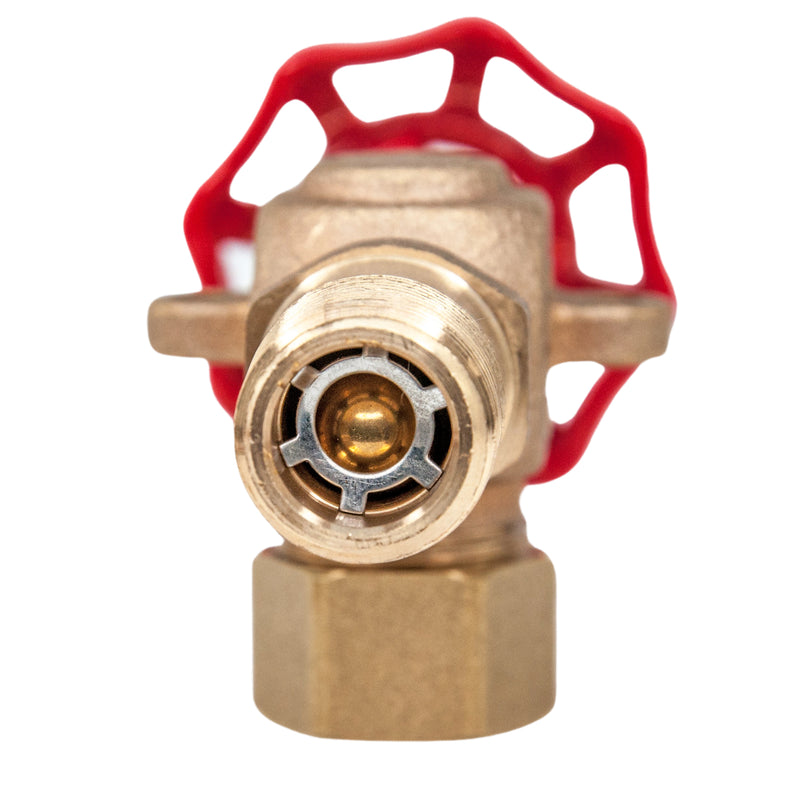

  • Rising Stem with Internal Copper Ball Check

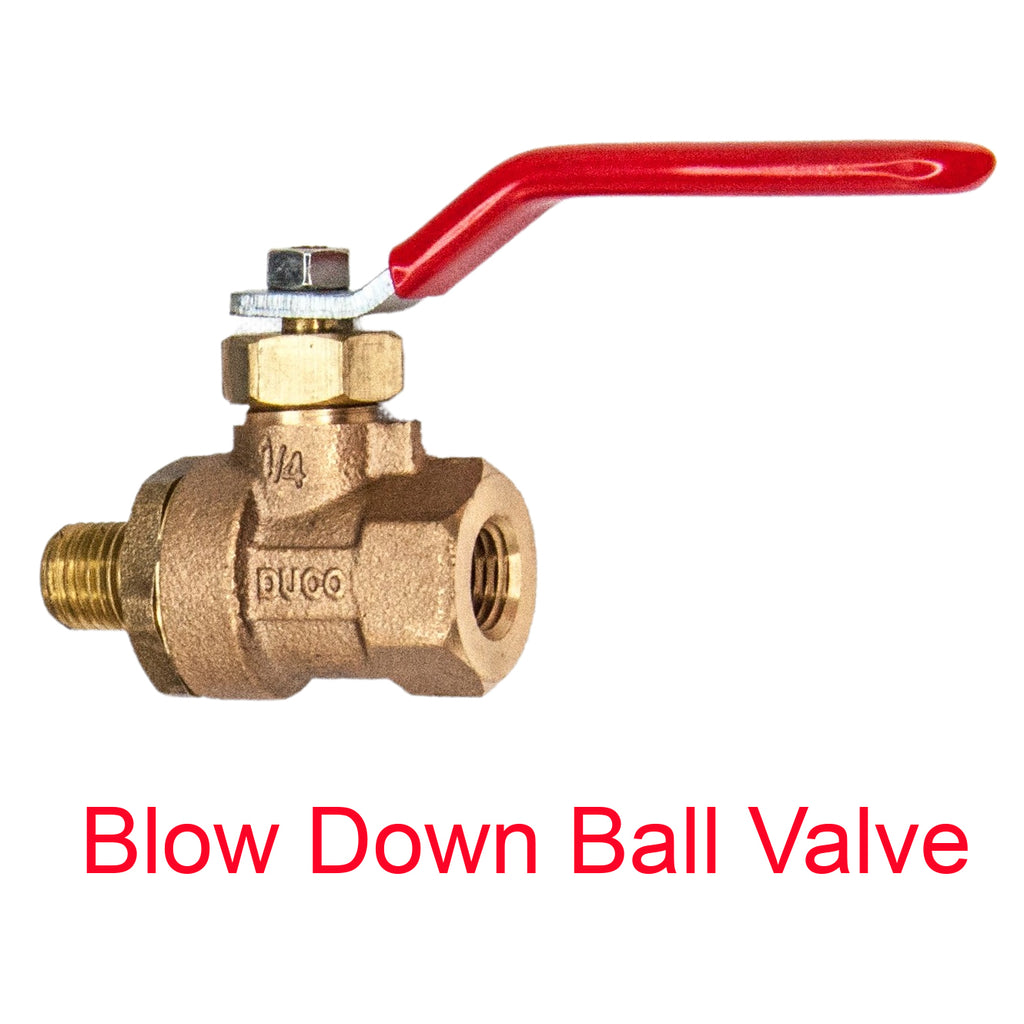

  • 1/4" Blow Off Ball Valve Included
  • 14" Rod (2) Included
  • Conforms to ASME Boiler Code
  • Complies with MSS-SP-80
  • 100% Leak & Pressure Tested



Included in Set  (Applies to Item# DWG-S & DWG-L)
  • 1 Water Gauge Upper Valve (1/2" NPT)
  • 1 Water Gauge Lower Valve (1/2" NPT)
  • 2 Glass Packing Nut
    • 2 Metal Washer
    • 2 EPDM Gasket
    • 2 Rod (14")
    • 1 Ball Valve (1/4" MNPT x FNPT)



    Additional Resources

    DWG Series Technical Sheet
