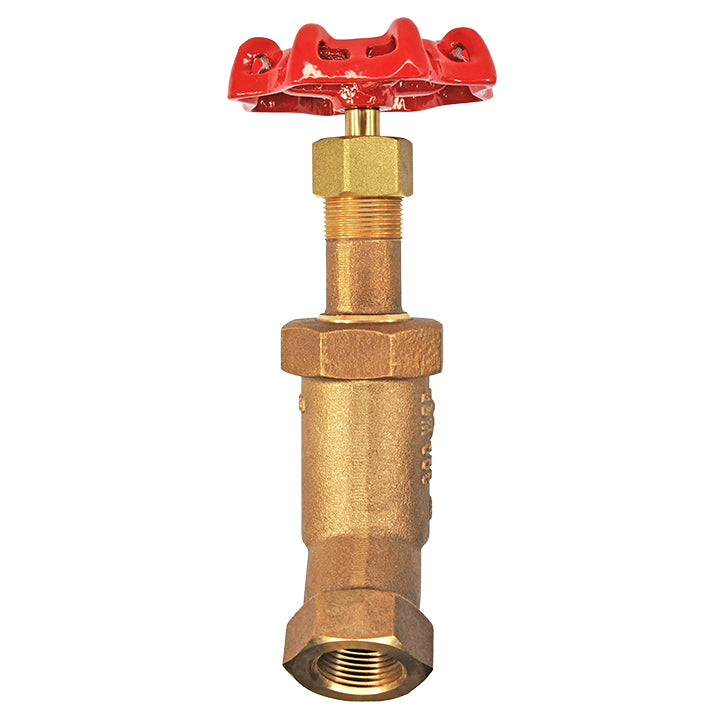

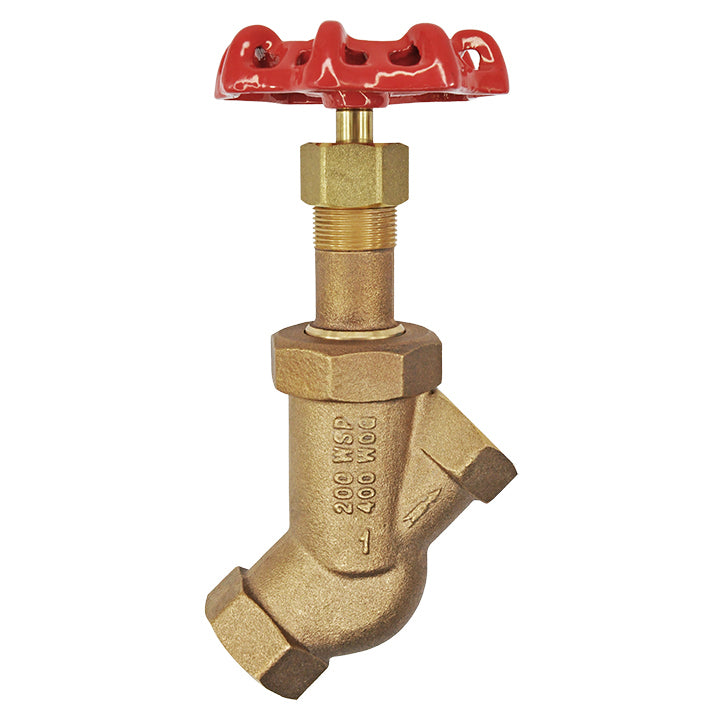

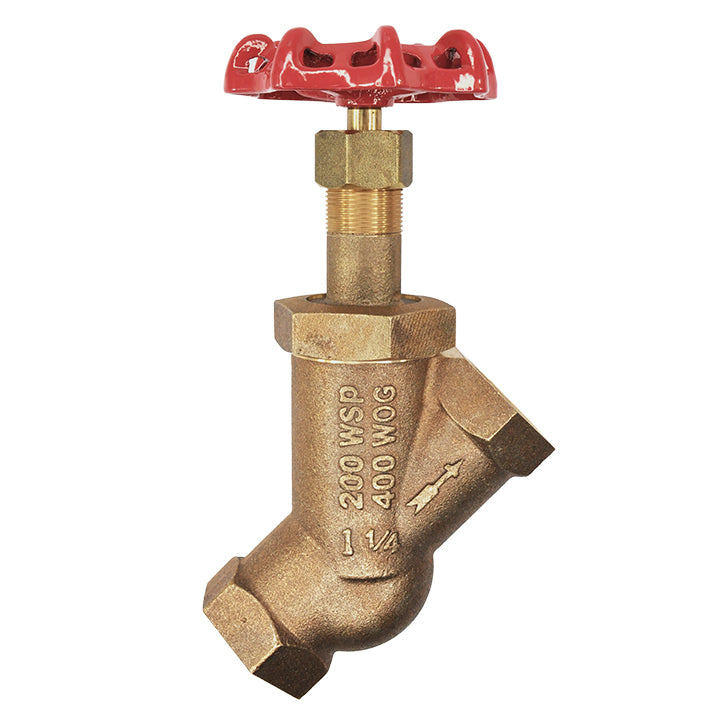

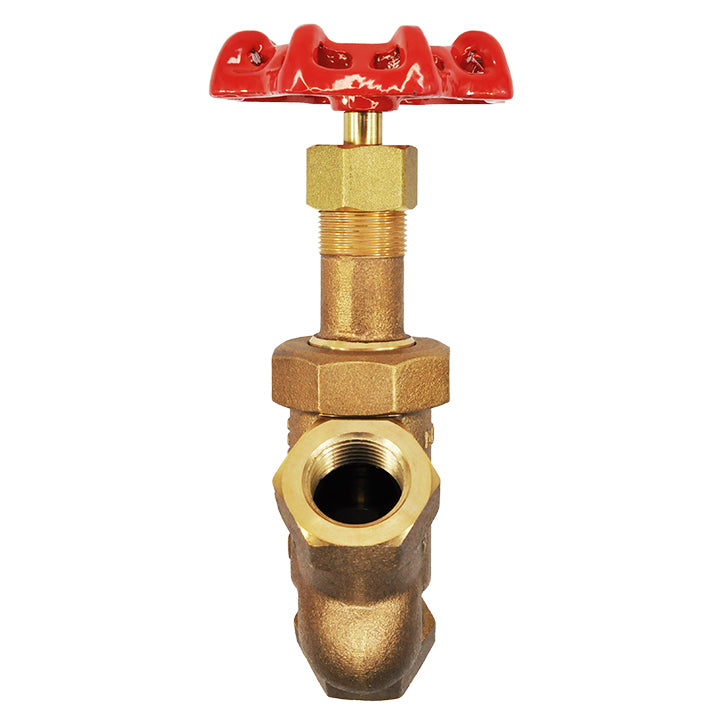

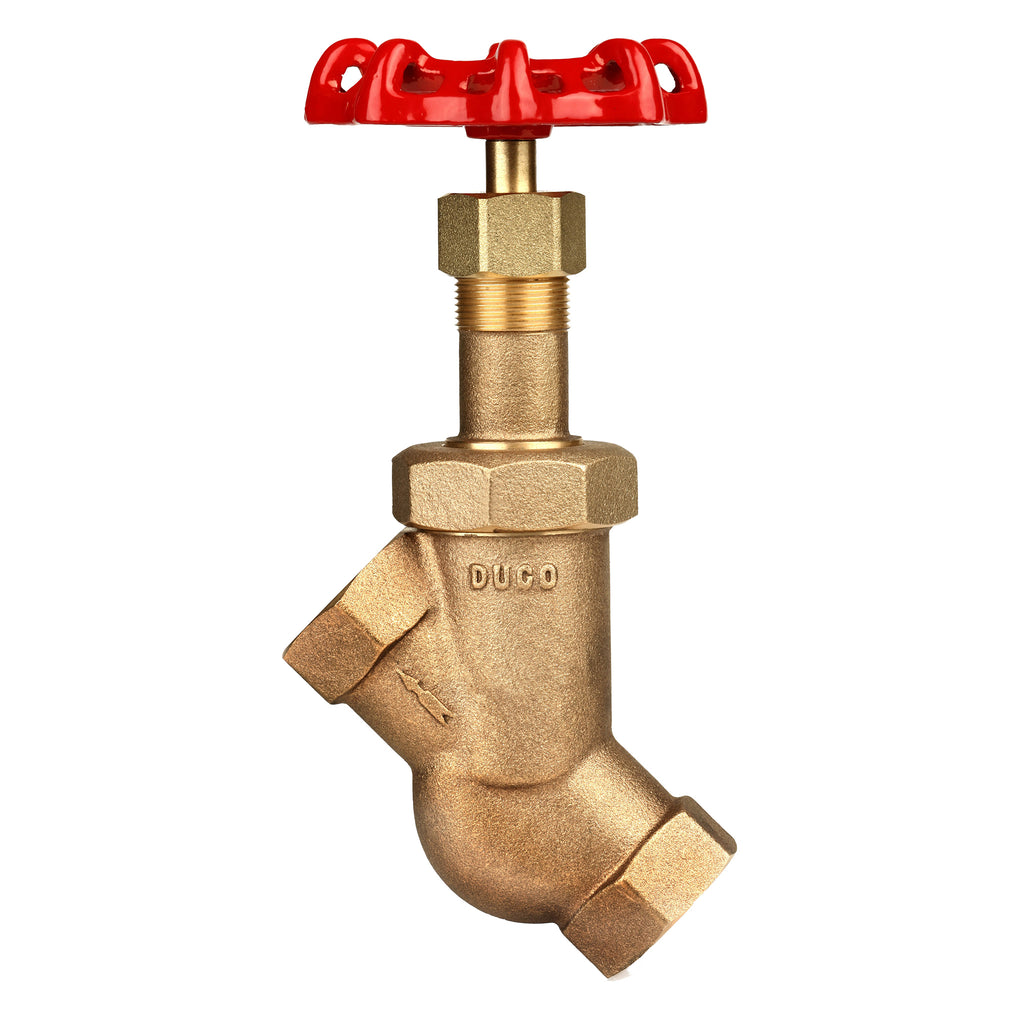

Duco® DBDV Series is a commercial-grade blow down valve designed to drain dissolved solids from the boiler. Commonly installed on the drain line of the boiler, it makes use of water and steam pressure to blow out of the boiler forcefully.
The body is made of bronze which is high ductility (crack resistant) and corrosion resistant. Contains lead, not for use in water systems intended for human consumption.
| Specifications |
- 200 lbs WSP / 400 lbs WOG
- 406°F Max.
- Bronze Body ASTM B62
- FNPT Threaded Ends
- Available Sizes: 1", 1-1/4"
|
| Features |
- Rising Stems
- Union Bonnet
- PTFE Disc
- Vented Hand Wheel
- Conforms to ASME Boiler Code
- Complies with MSS-SP-80
- CRN# OC13433.5C
- 100% Leak & Pressure Tested
|
DBDV Series Technical Sheet
